belt filter press for lime slurry

FOB Reference Price:Get Latest Price
$3,000.00 / Sets | 1 Set/Sets (Min. Order)
Production Capacity:
High Efficiency
Model Number:
DNY1000
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Henan, China (Mainland)
Brand Name:
DZ
Voltage:
Customer Requirement
Power(W):
Total 1.49kw
Weight:
1210kg
Dimension(L*W*H):
2600x1550x2270(mm)
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Keywords:
belt filter machine
Belt width:
1000mm
Dry solid:
98-158 kg/h
Material:
SS304
Inlet Concentration:
S.S. 1.5-2.5%
Capacity:
6.5-10.5 m3/h
Application:
Sludge Dewatering
Product name:
Belt filter press
Function:
Sludge dewatering machine
Supply Ability
Supply Ability:
1000 Set/Sets per Year belt filter machine
Packaging & Delivery
Packaging Details
Sludge Dewatering Belt Filter Machine main structure covered with Pearl cotton, spare parts in wooden cases
Port
Shanghai
Product Description



                                                            Belt Filter Press For Lime Slurry

DNY Belt Filter Press Introduction:

Based on the introduced advanced technology, DNY belt filter press is developed and designed based on DY belt filter press. DNY belt filter press is one ideal sludge-dewatering equipment which is widely used in chemical, coal, paper making, food staff, urban sewage industry. It's also can used for as a liquid-solid separating machine. It features in high efficiency, good dewatering effects and low consumption. Using this kind of DNY belt filter press, no need of concentrating pond, thus saving the investment and saving floor area..

Inlet Concentration
S.S.1.5-2.5%
Voltage
Customize
Dimension
2600x1550x2270(mm)
Capacity
6.5-10.5 m3/h
Belt Width
1000MM
Certification
CE, SOS
Power
1.49 kw
Warranty
2 years
Item Name
Belt filter machine
Function
Sludge dewatering
Dry Solid
98-158 kg/h
MOQ
1 set
Model Number
DNY 1000
Price
USD 3000
Cake Moisture
63-84.5%
Port
Shanghai

Features of DY belt filter press:

DY belt filter press has the following advantages:larger output, low consumption, smaller working space, better working condition, easy-operate and convenient maintenance. It's more automatic, ingenious and efficient with comparison to the same de-watering ways overseas or at home.

Working principle of DY belt filter press:

DY belt filter press consists of drive machine, sludge distributor, filtrating belt, tension device, automatic adjusting machine, filtrating belt washed machine, mud scraper, gravity dehydration, wedge dehydration, squeezing dehydration and frame, etc.

The process of filter is that sludge after flocculation treatment goes into sludge distributor to gravity dehydration which is a little long period with horizontal movement and small angle rising period; then filtrated sludge moves with filtrating belt and under gravity, free water is separated from flocculation material. Most of water are removed from sludge, so sludge almost loses mobility. Then into wedge dehydration. The space in wedge dehydration is from small size to big size and then the two filtrating belts come together to make sludge between two belts under gradually growing squeezing pressure to let water discharged frequently. At this stage, sludge has lost the mobility which prepares for squeezing dehydration next step.
The diameter of squeezing rollers are ordered from small to big size, but pressure on sludge grows gradually. Sludge is squeezed and plasma cut through several S type orders squeezing rollers to make saturated water dehydrated from sludge which finishes the dewatering process of sludge. When filtrating belt goes through discharging device, mud cakes are scraped by scraper from filtrating belt. The upper and lower filtrating belts are washed and then go back to gravity dehydration to fulfill next cycle of sludge dehydration.

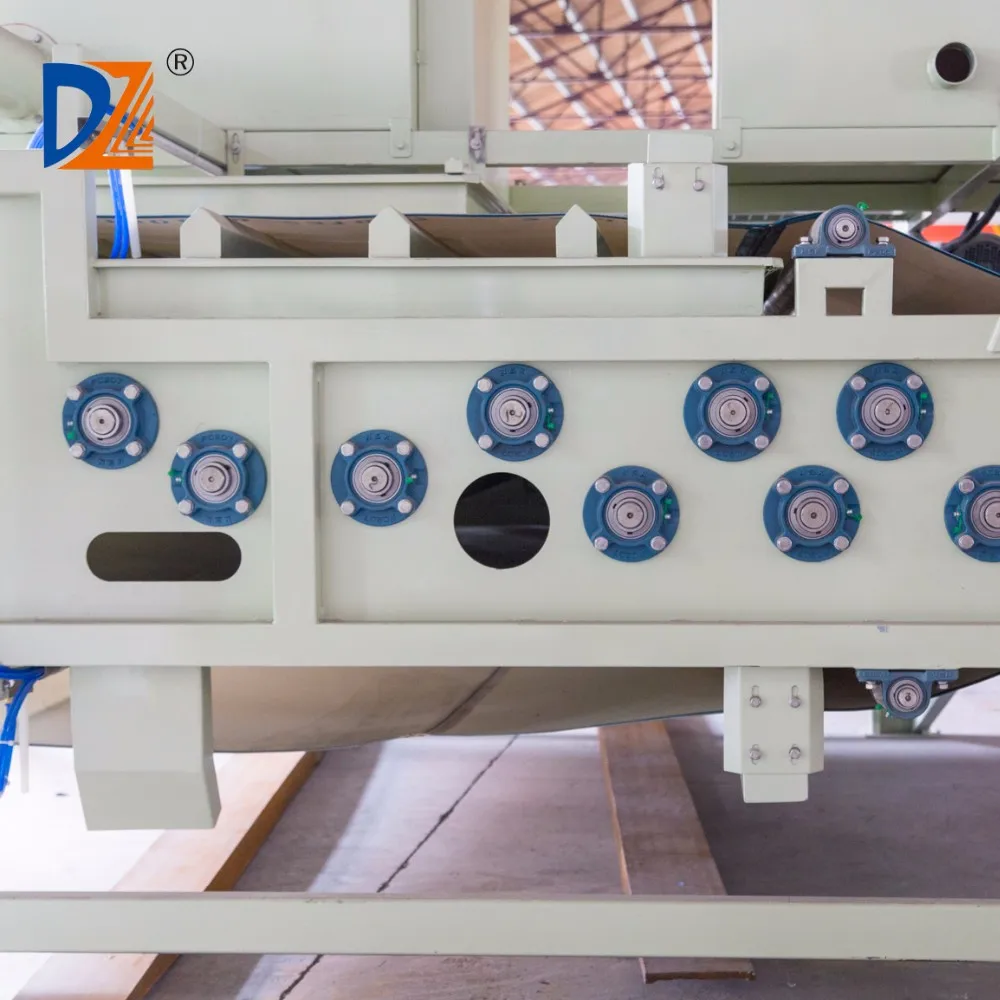

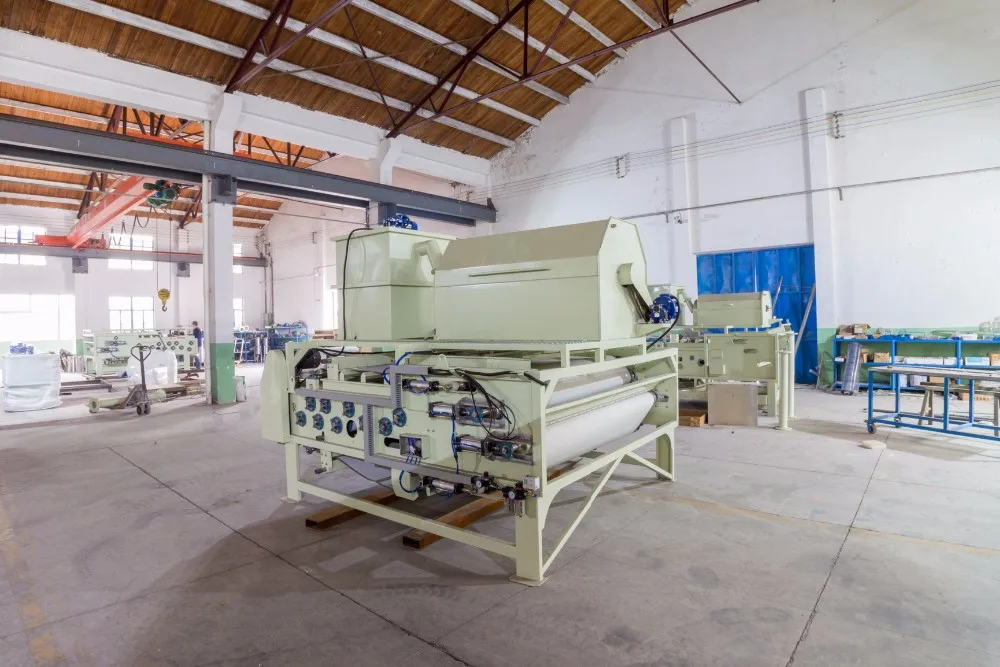

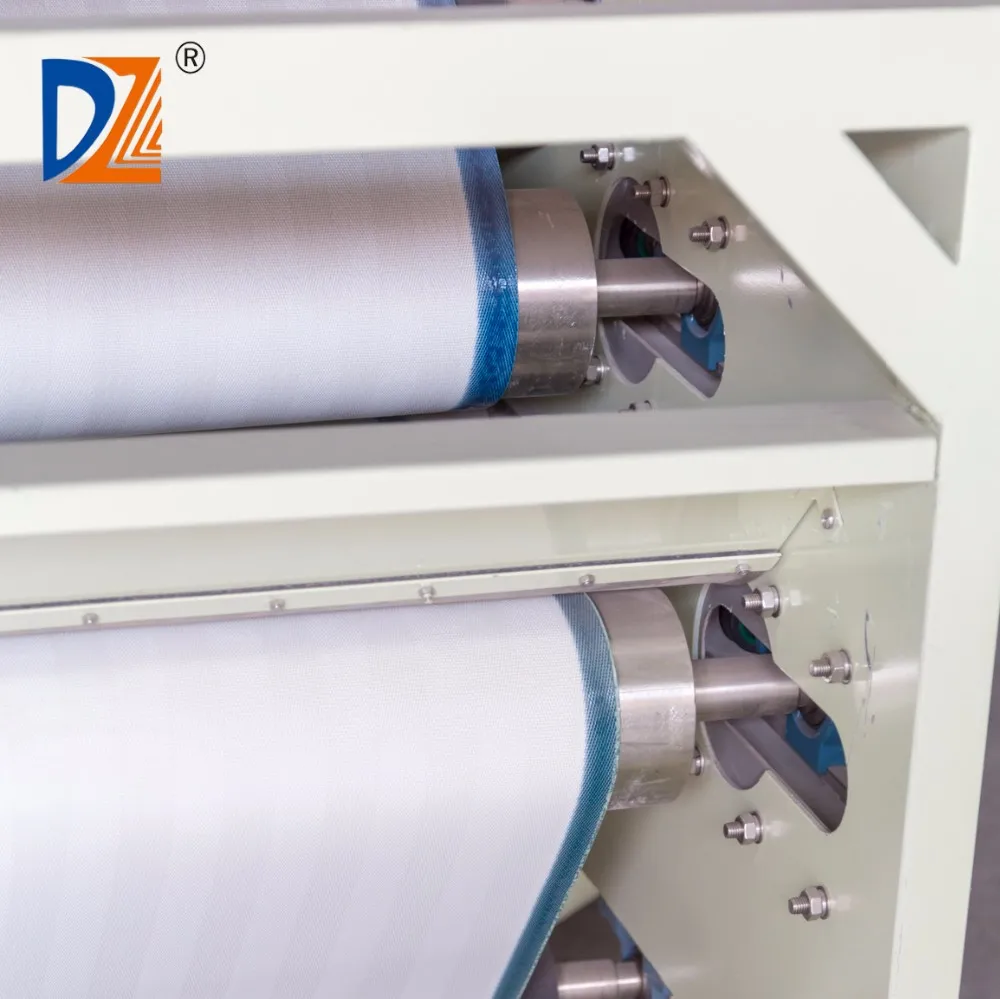

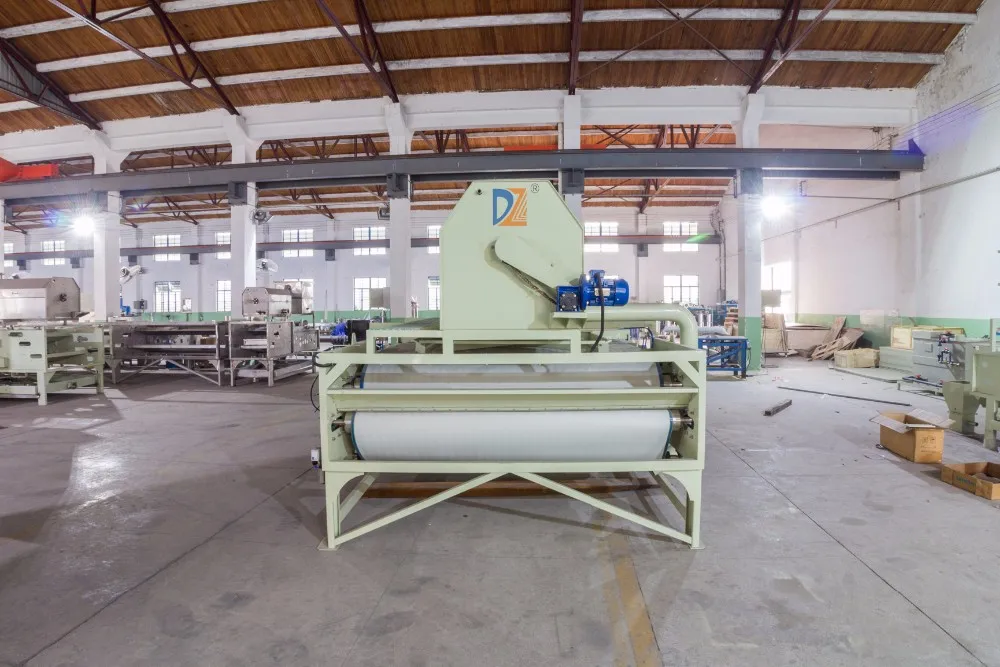

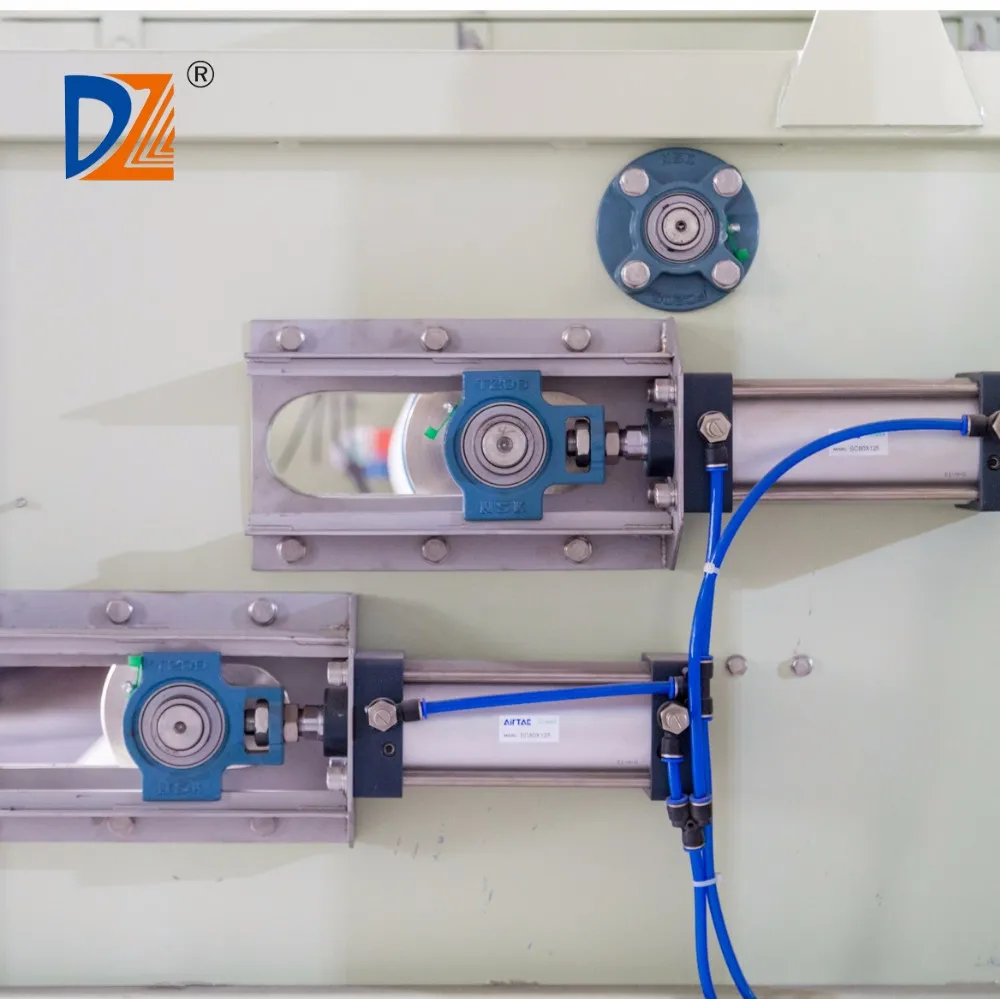

Detailed Images

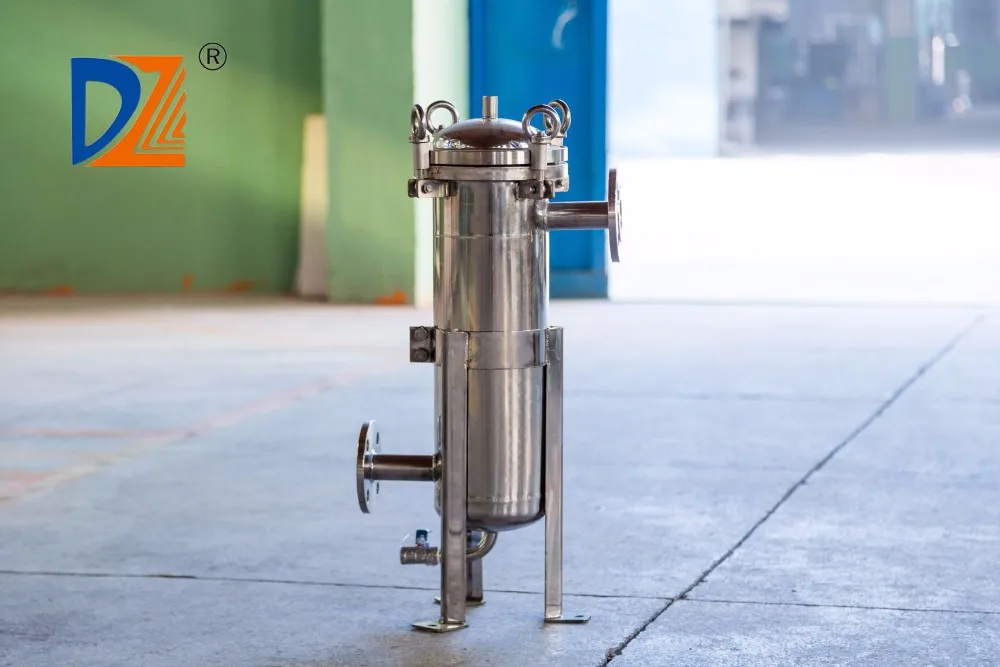

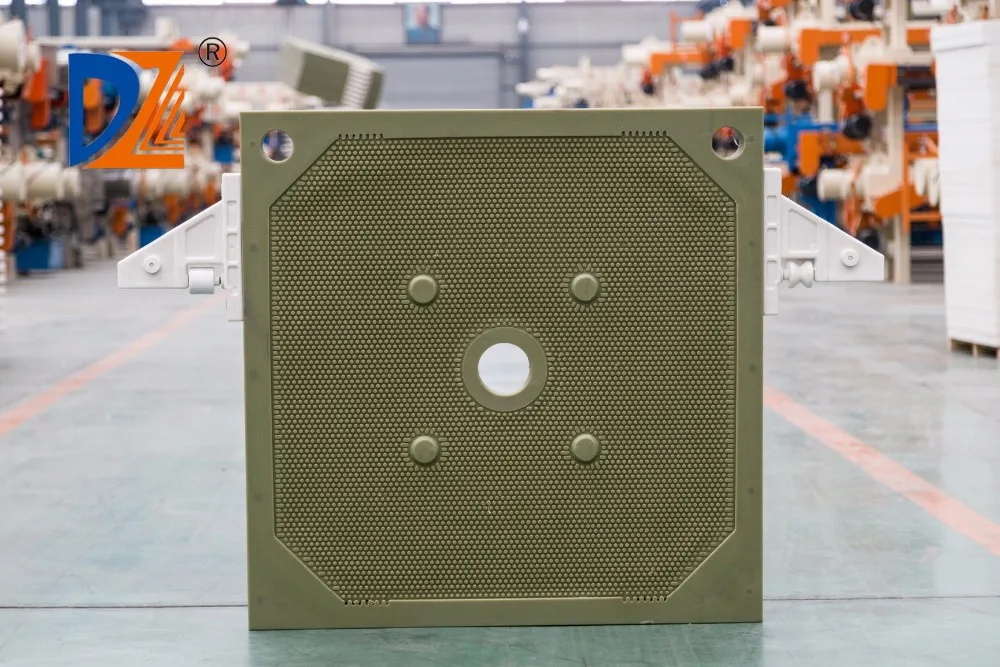

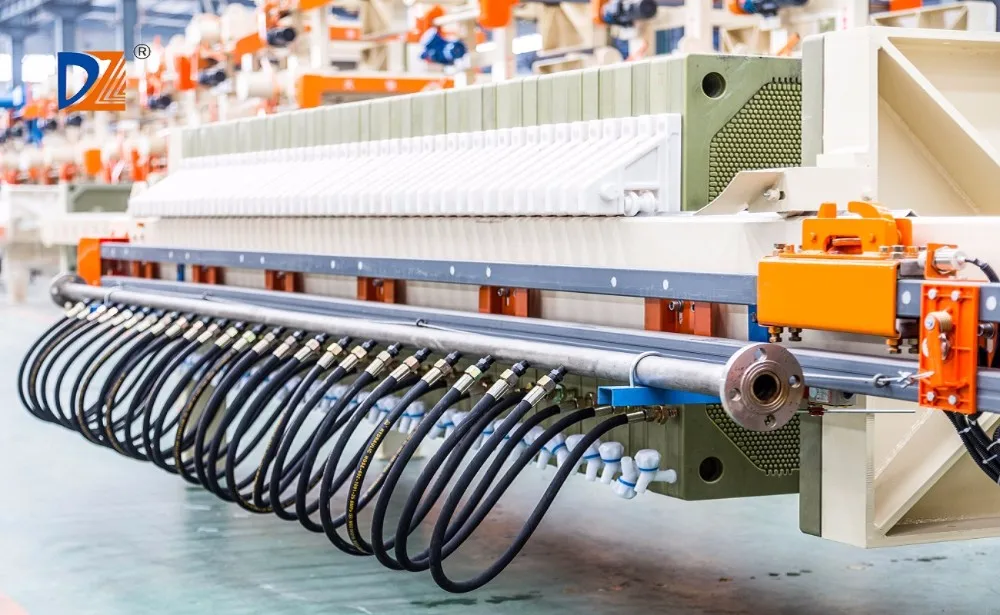

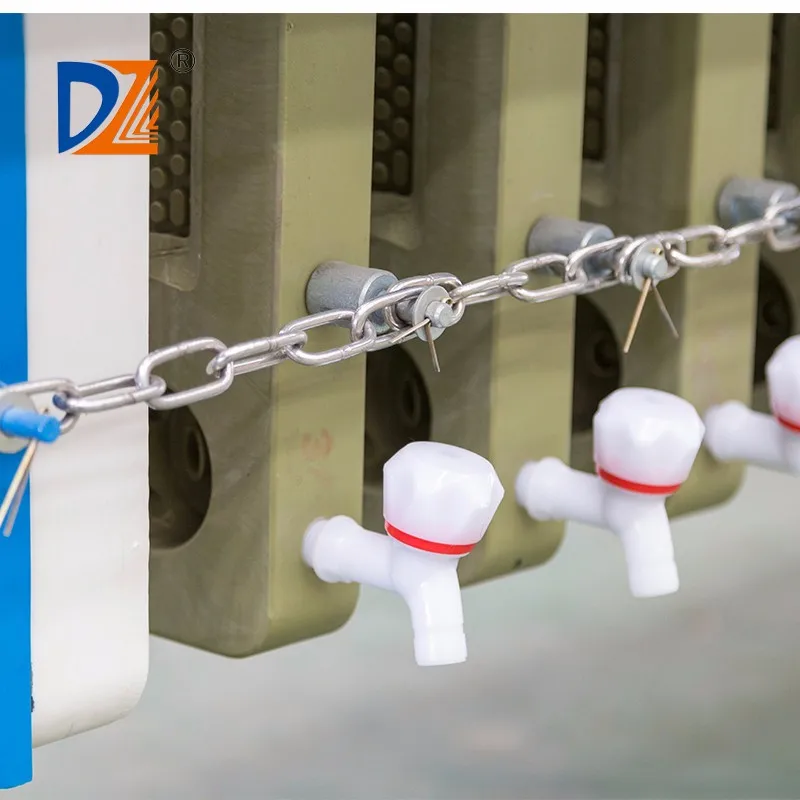

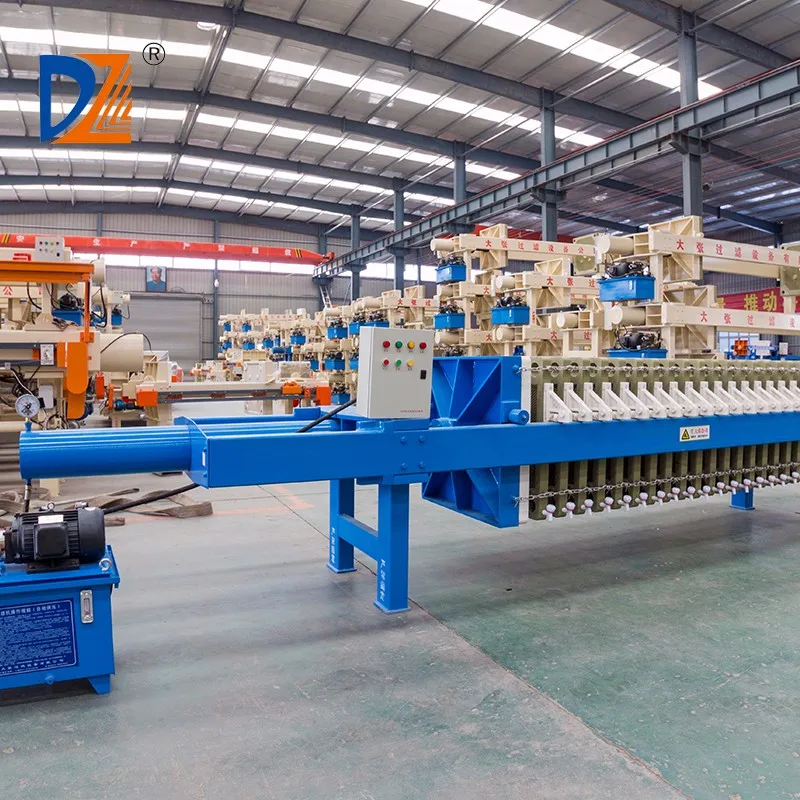

Other Products

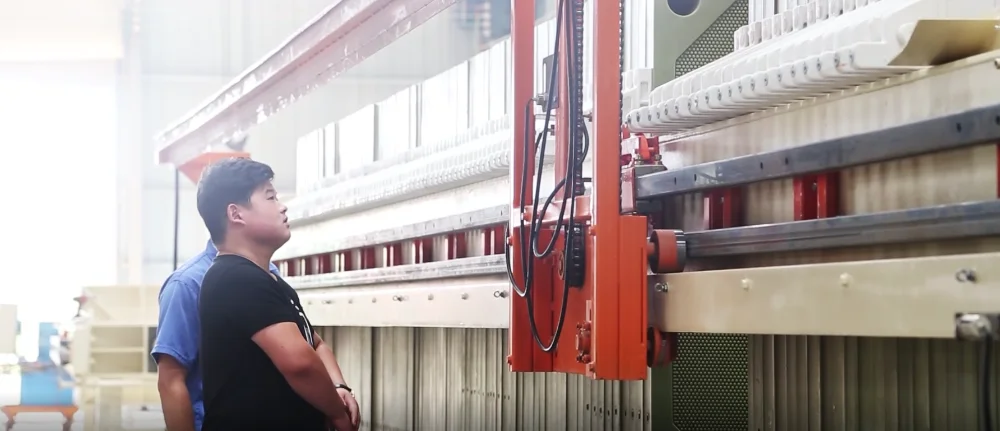

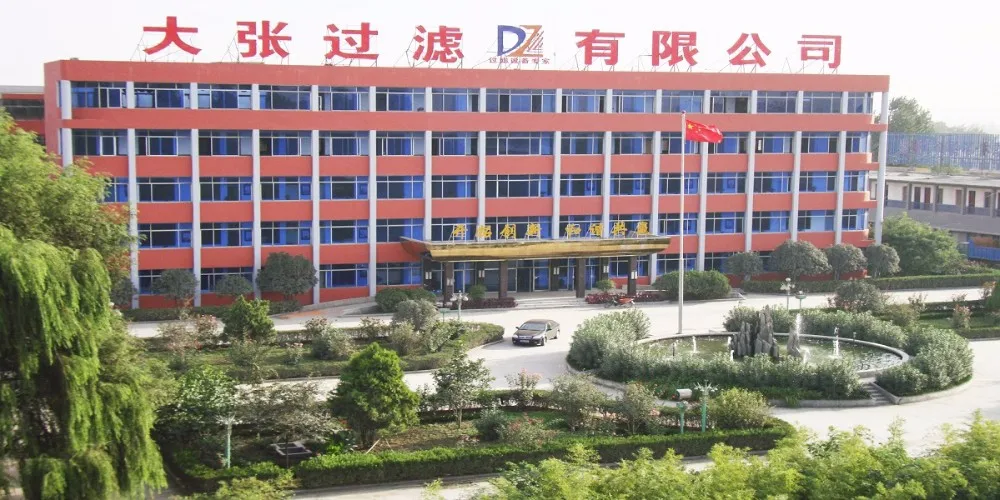

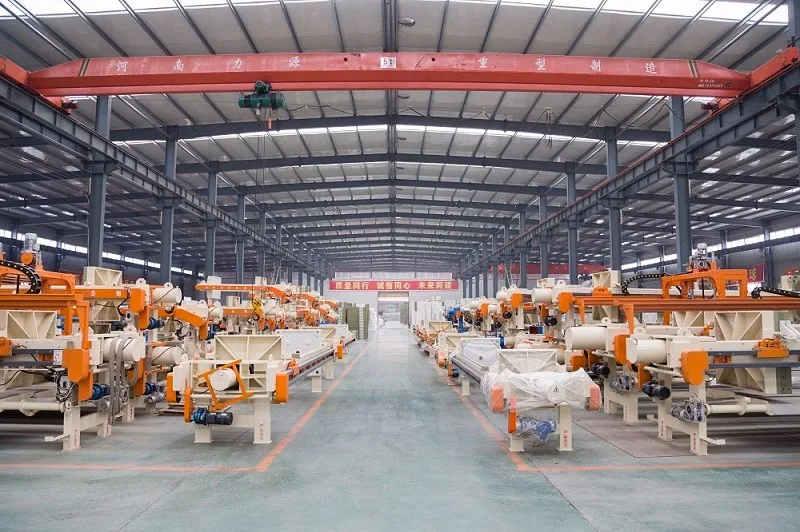

Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
   In-Sales Service
   * Factory Price
   * Design project
After-Sales Service
* Training how to instal the machine
* Maintenance, warranty

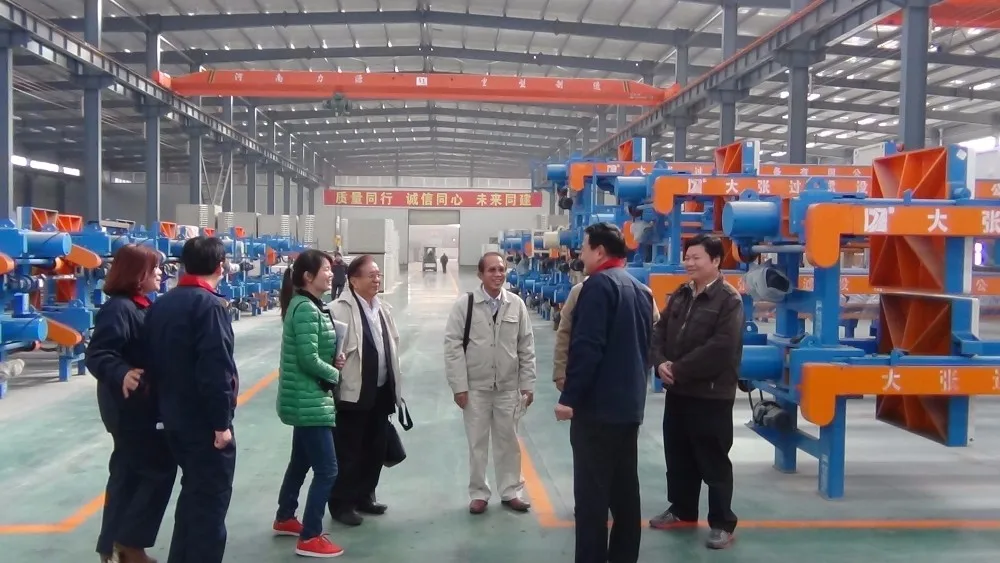

Our Customer

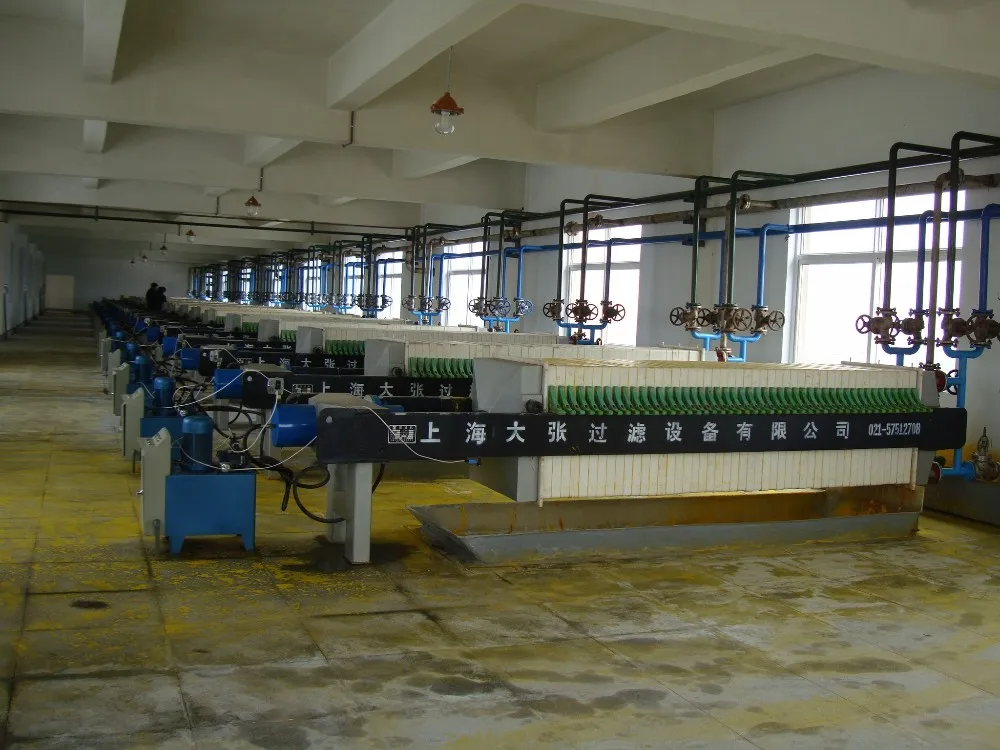

Customer Case
