industrial juice filter
Automatic Belt Filter Press
Sewage Dewatering Belt Filter Press
Stainless Steel 304/316
1000 Set/Sets per Month industrial juice filter
Packaging & Delivery
Filter press main structure covered with Pearl cotton, spare parts in wooden cases
1 - 1
To be negotiated
Based on the introduced advanced technology, DNY belt filter press is developed and designed based on DY belt filter press. DNY belt filter press is one ideal sludge-dewatering equipment which is widely used in chemical, coal, paper making, food staff, urban sewage industry. It also can be used as a liquid-solid separation machine. It features in high efficiency, good dewatering effects and low consumption. Using this kind of DNY belt filter press, no need for concentrating pond, thus saving the investment and saving floor area.
Main Features of DNY Belt Filter Press:
1, It is an integration equipment, automatic control, continuous operation; 2, Low power consumption, long service life; 3, High concentration dehydration efficiency and high solid content of mud cake; 4, Easy management, easy maintenance; 5, Low noise, economic and reliable, with wide range of application.

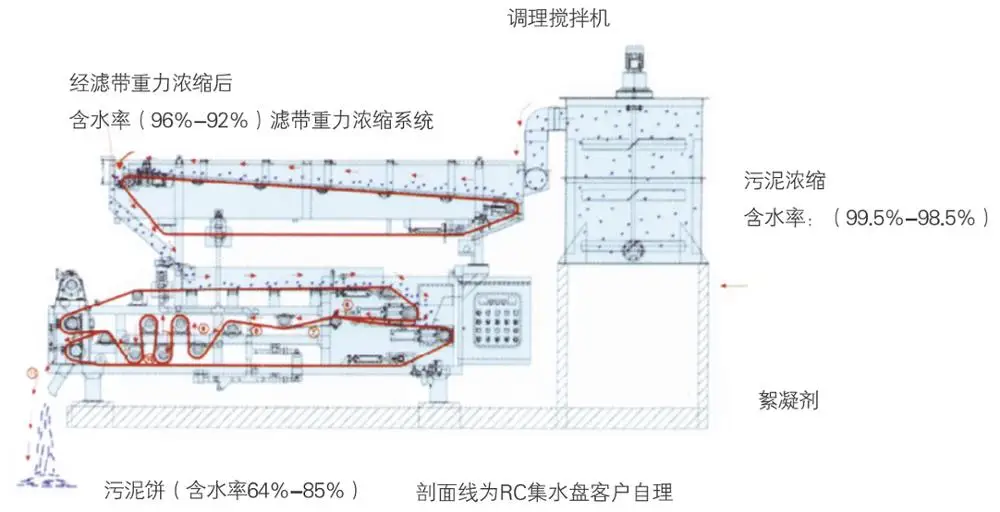

Working Process of Belt Filter Press:
1.Preprocessing of flocculation. Mix polymer with the sludge to permits the agglomeration of particles. 2.Distribute the flocculated sludge onto the Gravity Dewatering Zone. The slurry moves through a series of plows and the free liquid is removed by gravity drainage porous. 3.Then the slurry moves into the Long Wedge Zone and became loosely structured cake. 4.The loosely structured cake proceeds forward and enter into the Roller Pressing Zone, which consists of a combination of rollers that decrease in size and accordingly can produce the medium and high pressure to squeeze. 5.Finally the cake is scraped off the belts and discharged. At the same time, both belts separate and back to the beginning of the process.
1) Chemical Coating, paint, pigments, silica, caustic soda, soda ash, alkali salt mud, white carbon black, silver sulfate, copper sulfate, ferrous sulfate, potassium sulfate, potassium chlorate, phosphor, saponin, graphite powder, bleaching powder, ferric oxide, water purification machines (aluminum sulpate and polyaluminium chloride, basic aluminum lithopone).
2)Sewage Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating
wastewater, sewage and waste, chemical electrolysis of water environment.
3) Pharmacy Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acidcalcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood.
4) Clay Bentonite, old soil, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces.
Packaging & Shipping
Packaging Detail: Seaworthy packing
Delivery Detail: 25 days after prepayment
1.Dazhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.
2.The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide prodection welding.
3.Dazhang self-developed filter press with the biggest filter area of 1000m2 goes well in Vietnam.
4.The main beam of Dazhang filter press is designed by adopting welded box contruction, and manufactured by making use of submerged arc auto welding technology.
5.The chain cover which is independently developed by Dazhang has the characteristic of high hardness and anti-corrosion.
6.All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhestion. It can save hundreds tons of putty every year, thus not only reduce the cost, but also protect the enviroment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing, producing and selling filter presses and other related equipment. Our products mainly include more than 6series related hundreds of good sellers, such as Automatic Membrane Filter Presses, Automatic Chamber/Racessed Filter Presses, Hydraulic/Mechanical/Manual Filter Presses, Special Filter Presses, Filter Plates(including CGR Gasketed Filte Plates),Belt Filter Presses, Bag Filters ect. In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
Our products find their extensive applications in the fields of petroleum, chemical, pharmacy, sugar refinery, food stuff, coal washing, oiling, printing and dyeing, ceramaic, mining and metallurgy, sewage disposal and so on. With good quality, our products are not only widely welcome in China, but also successfully exported to many countries,such as America, the EU, Russia, Australia etc. Many of our customers are lieted on Fortune Global 500 Companies.
1). Are you filter press manufuacturer?
Yes, we are the company whichis the joint of trade and industry, and we can also provide sample test,
equipment manufacture,after-sale serviece,etc.
2). Which country have your products been exported?
Many country, such as Australia, EU, America and so on. And our company has agencies in Vietnam.
3). What industry application of this product?
Many industries, such as chemical, food, medicine, sludge treatment and so on.
4). How many about your MOQ?
5). What is the voltage/phase for this machine ?
220V 50Hz 3Phs, 380V 50Hz 3Phs and 415V 50Hz 3Phs,also can made as the clients’ need.
6). What is the Mode of transportation ?
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
7). How long can we get the goods?
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.
8). What about Payment term?
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax,
the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
