Semi-automatic Hydraulic Chamber Filter Presses Machine

FOB Reference Price:Get Latest Price
$5,000.00 - $16,000.00 / Sets | 1 Set/Sets (Min. Order)
Production Capacity:
High Efficiency
Model Number:
XMY120/1250-30UK
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Henan, China (Mainland)
Brand Name:
DZ
Voltage:
380V/220V/400V
Power(W):
4.0kw
Weight:
6728KG
Dimension(L*W*H):
5020*1770*1600
Certification:
ISO, CE, SGS
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Keywords:
filter press machine
Name:
Semi-automatic chamber filter press machine
Material:
Carbon Steel
Color:
Customers' Required
Filter Area:
120M2
Application:
liquid solid seperation
Supply Ability
Supply Ability:
10000 Set/Sets per Month filter press machine
Packaging & Delivery
Packaging Details
Semi-automatic chamber filter press machine main structure covered with Pearl cotton, spare parts in wooden cases
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Product Details

Semi-automatic Hydraulic Chamber Filter Presses Machine

Semi-automatic chamber filter press machine use electrical-contact pressure meter to realize pressure keeping, so it is features of easy operation, stable performance, but the cakes are discharged manually. So it is suitable for the filter press which filtering area is not too big and have no too much plates.

The chamber filter press is the best suitable machine for you. It has the features of precision filtration. labor saved and low moisture, which can reduce the lost of filtering material when filtering. It can save cost.

Features of Chamber filter press :


1.Reinforced PP filter plate resists stronger corrosion and high temperature with longer life
2.Hydraulic squeezing can perfectly avoid leakage
3.Best filter cloth are features of high solid-liquid seperation effect.
4.Every plate has been tested under high pressure of 21Mpa before delivery
5.The flatness of filter plate is lower than 25um which avoid leakage.
6.Feeding pressure is upto 2Mpa by design
7.High quality motor makes the whole machine running stable
8.Auto hydraulic maintaining pressure
9.Siemens PLC control all the process
10.Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.

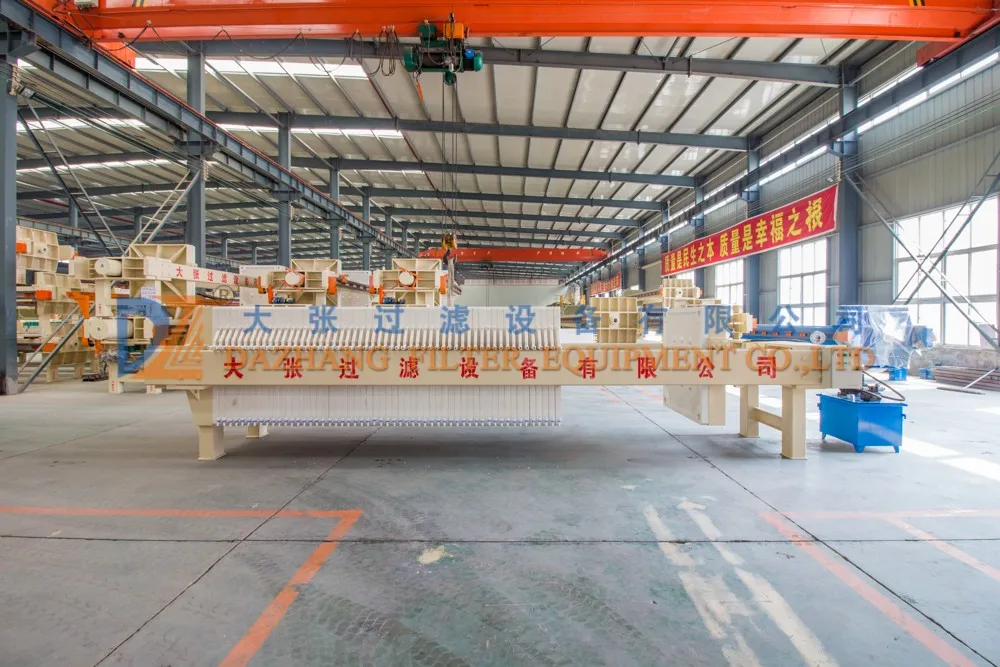

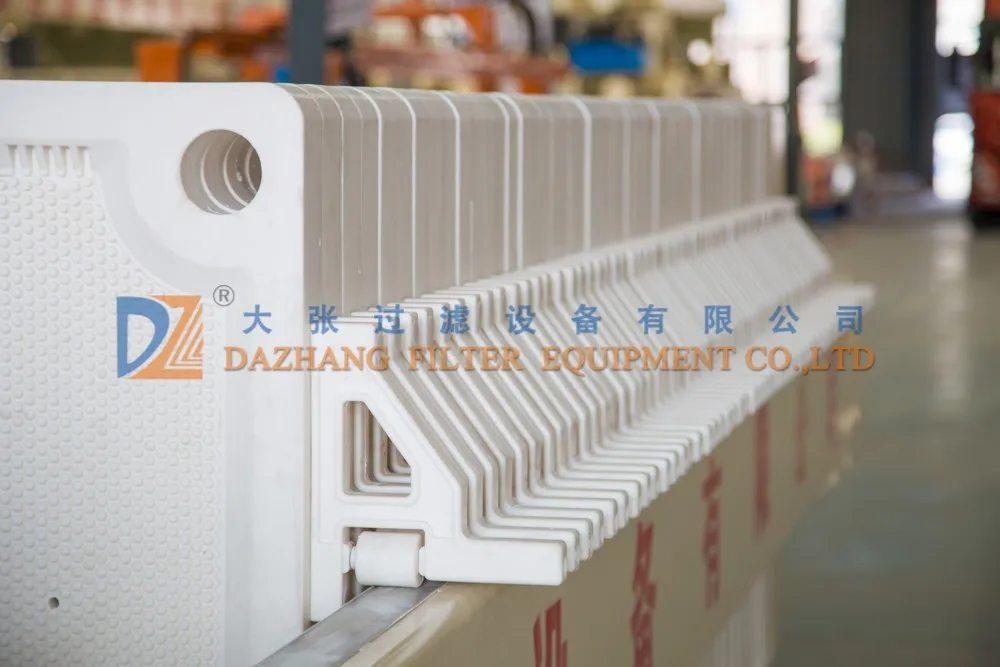

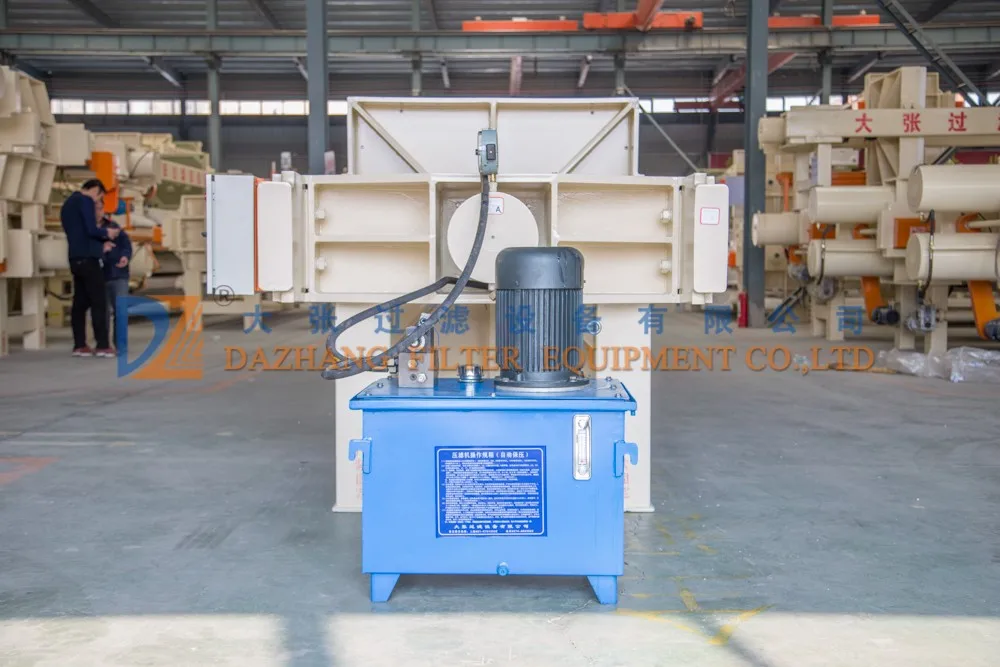

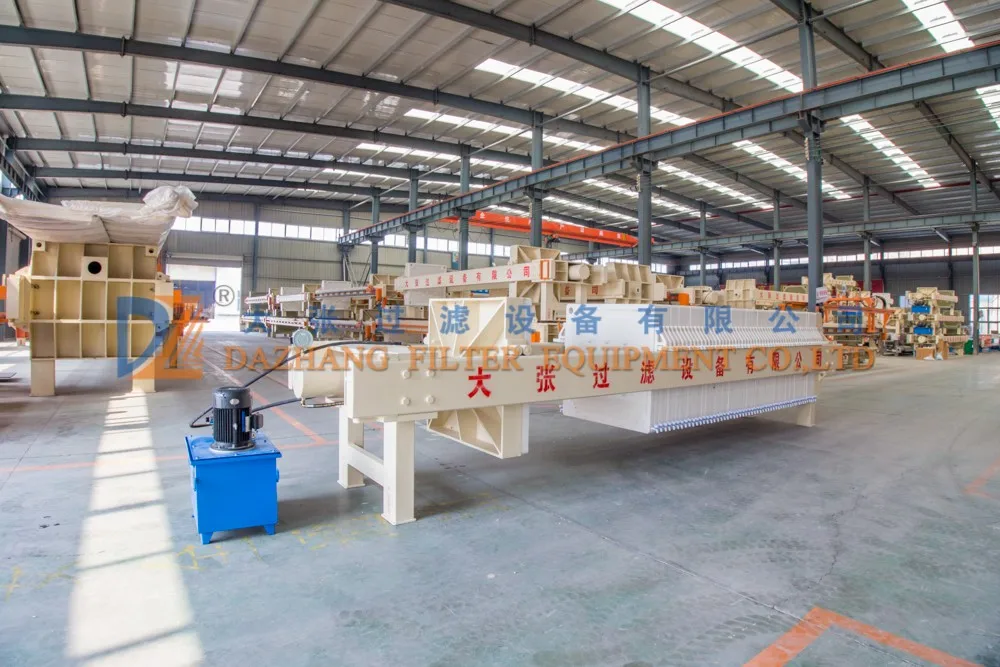

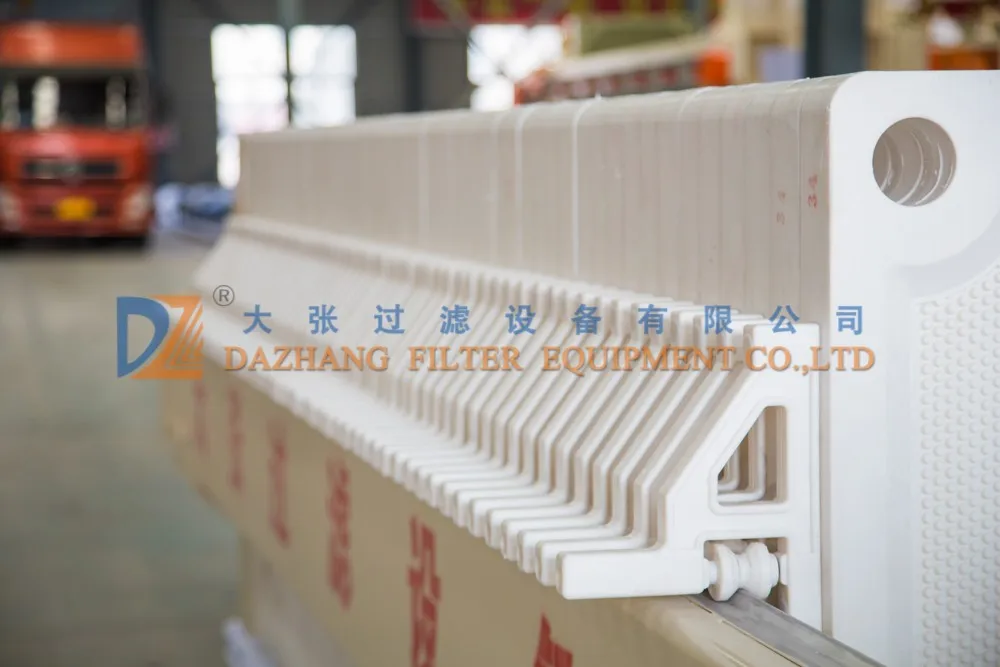

Detailed Image
Technical Data
Model
Filter Area (㎡)
Plate Size (mm)
Cake Thickness(mm)
Filter Chamber Volume (L)
Plate No.(pcs)
Filtration Pressure (Mpa)
Motor Powder (Kw)
XMY100/1250-30
100





1250*1250





30
1468
36





≥0.6





4.0
XMY120/1250-30
120
1746
43
XMY140/1250-30
140
2063
51
XMY160/1250-30
160
2341
58
XMY180/1250-30
180
2619
65
XMY200/1250-30
200
2896
72
XMY220/1250-30
220
3214
80
XMY250/1250-30
250
3650
91

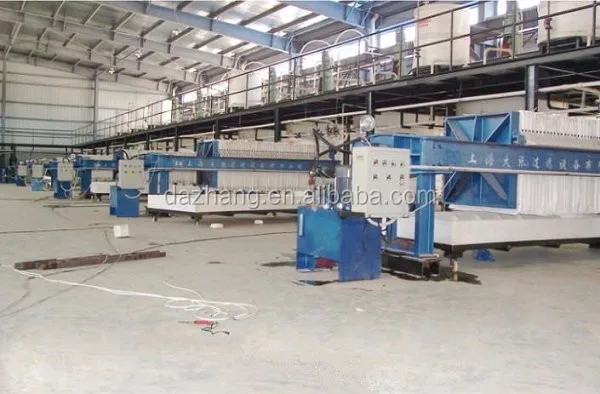

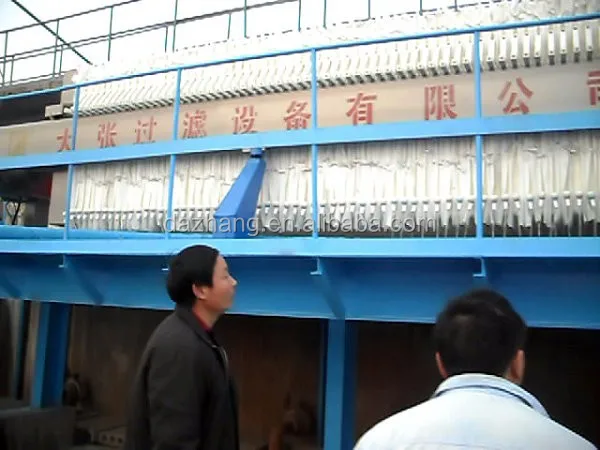

Customer Site
Certifications
Work Shop
Our Company
Packing & Delivery

Our product line.


Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters

In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
