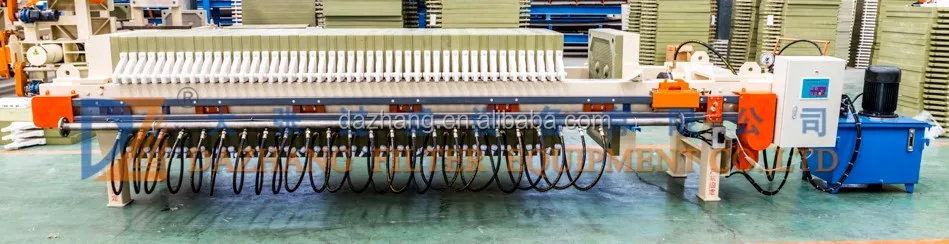

870 Series High Pressure Automatic Membrane Filter Press

FOB Reference Price:Get Latest Price
US $1,000-20,000 / Sets | 1 Set/Sets High Pressure Automatic Membrane Filter Press (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Production Capacity:
High Efficiency
Place of Origin:
Henan, China (Mainland)
Brand Name:
DZ
Model Number:
XMZG50/870-U
Voltage:
Customer Requirement
Power(W):
2.2kw
Weight:
4057kg
Dimension(L*W*H):
4790x1250x1300(mm)
Certification:
ISO9001,CE,SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
DZ High Pressure Automatic Membrane Filter Press
Keywords:
High Pressure Membrane Filter Press
Type:
Automatic Membrane Filter Press
Description:
Solid-liquid Separation Membrane Filter Press
Filter Area:
50m2
Material Of Plate:
PP
Plate size:
870*870mm
Cake Thickness:
<=35mm
Filter Chamber Volume:
789L
Application:
Sewage Dewatering;Food;Chamical
Supply Ability
Supply Ability:
10000 Set/Sets per Year High Pressure Automatic Membrane Filter Press
Packaging & Delivery
Packaging Details
seaworthy packing
Port
Shanghai,China
Lead Time :
15 days after payment
Product Description
Membrane plate
Membrane plates bring superrxcellent filtration effect and unimaginable benefits.

Squeezing twice after completion for filtration can improve solid content of the cake.



Membrane plate can carry out "Low pressure for filtration, higher pressure for squeezing." Improving life-span and reducing energy consumption.



Improved washing effect, shortened washing time, saved washing liquid and improved quality of products.

ModelFilter Area/m²Plate Size/mmFilter Chamber Volume/L

Filtration ressure

/Mpa

Motor

Power

/kw

Weight

/kg

Dimensionns

/mm

XMZG30/870-30U30870×870460≥0.62.226803180×1400×1230
XMZG40/870-30U4059530503570×1400×1230
XMZG50/870-30U5074834564110×1400×1230
XMZG60/870-30U6090240034550×1400×1230
XMZG70/870-30U70105645844990×1400×1230
XMZG80/870-30U8012105082

5430×1400×1230






Product datils


Application industry

1) Chemical
Coating, paint, pigments, silica, caustic soda, soda ash, alkali salt mud, white carbon black, silver sulfate, copper sulfate, ferrous sulfate, potassium sulfate, potassium chlorate, phosphor, saponin, graphite powder, bleaching powder, ferric oxide, water purification machines
(aluminum sulpate and polyaluminium chloride, basic aluminum lithopone).

2)Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan,

seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant

protein, and spices.

3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating

wastewater, sewage and waste, chemical electrolysis of water environment.

4) Pharmacy
Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid,

calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood.

5) Clay
Bentonite, old soil, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces.

6) Metallurgy

Gold, silver, copper, zinc, iron, rare earth powder processing, etc.

7) Refining

Diesel oil, sesame oil, white oil, machine oil, shortening dewaxing, vegetable oil, glycerin.

application industry.jpg

Packaging & Shipping

 Packaging Detail: Seaworthy packing

 Delivery Detail: 30 days from prepayment


Technical Advantage

    1.Dazhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.

    2.The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide prodection welding.

    3.Dazhang self-developed filter press with the biggest filter area of 1000m2 goes well in Vietnam.

    4.The main beam of Dazhang filter press is designed by adopting welded box contruction, and manufactured by making use of submerged arc auto welding technology.

    5.The chain cover which is independently developed by Dazhang has the characteristic of high hardness and anti-corrosion.

    6.All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhestion. It can save hundreds tons of putty every year, thus not only reduce the cost, but also protect the enviroment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.

Our Services

Pre-sale Serive

Our technical support team which have the professional knowledge level will help you to solve the problems that you meet in the using process of the solid-liquid equipments.

Services during the sale

In the process of the clients buying the products, we will provide clients the satisfactory and considerate service through a series of rigorous service style. We respect clients and always devote ourselves to improving the total of clients: help clients to draft solving plans.

After-sales service

Dazhang Filter Equipment Co., Ltd insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our mission is woking through professional consulation, exquisite thchnical support and standard solution in order to constantly meet your neds, and finally achieve satisfactory results.

Technological support

Dazhang Group has been largely adopting new technologies, new techniques and high-tech equipments. And Dazhang Group also has strict and effective quality control system. We have obtained Iso9001 quality system certificate.

Dazhang Filter Equipment Co., Ltd insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.

Company Information

    Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. We are also good at supplying our customers with comprehensive filtration solutions. Our company nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.

    Our products find their extensive applications in the fields of petroleum, chemical, pharmacy, sugar refinery, food stuff, coal washing, oiling, printing and dyeing, ceramaic, mining and metallurgy, sewage disposal and so on. With good quality, our products are not only widely welcome in China, but also successfully exported to many countries,such as America, the EU, Russia, Australia etc. Many of our customers are lieted on Fortune Global 500 Companies.


FAQ



1). Are you filter press manufuacturer?

    Yes, we are the company whichis the joint of trade and industry, and we can also provide sample test,

equipment manufacture,after-sale serviece,etc.

2). Which country have your products been exported?

    Many country, such as Australia, EU, America and so on. And our company has agencies in Vietnam.

3). What industry application of this product?

    Many industries, such as chemical, food, medicine, sludge treatment and so on.

4). How many about your MOQ?

    1 Set.

5). What is the voltage/phase for this machine ?

    220V 50Hz 3Phs, 380V 50Hz 3Phs and 415V 50Hz 3Phs,also can made as the clients need.

6). What is the Mode of transportation ?

    LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air

7). How long can we get the goods?

    we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.

8). What about Payment term?

    T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax,

 the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
